Modular crane range
SMST's modular crane range offers the most efficient and versatile solution for all deck and offshore handling operations.
Key features:
- Modular and exchangeable setup
- Highest level of energy efficiency
- Precise load control by secondary drive system
- Advanced technology for floating wind
- High workability
SMST provides a wide range of modular offshore and 3D cranes for deck and offshore operations. The Active Heave and 3D Motion Compensation system installed on the multifunctional cranes ensure safe and efficient handling, lifting and lowering equipment under rough sea conditions. The modular setup enables the cranes to be used for multiple operations, even after years in service, offering maximum flexibility.
Modular Setup
The SMST modular crane range is available in various executions and combinations:
- Various winches for deck handling up to ultra-deep-water operations
- Boom configurations: knuckle boom, telescopic boom, fixed boom and 3D motion compensated boom for operating around wind turbines and substations
- Exchangeable knuckle setup for maximum operational flexibility
Features
- High workability
- Highest level of energy efficiency
- Precise load control by secondary drive system
- Intuitive graphical user interface
- In-house designed control system
- State-of-the-art object detection
- Connectivity to SMST remote access system
- Advanced technology for floating wind
- Fast commissioning and installation
Crane range
To offer flexibility, SMST delivers a wide range of subsea and 3D cranes based on a modular setup. This modular design enables the exchange of booms, maximizing the operational flexibility of the cranes even more. A subsea or heavy lift knuckle can easily be exchanged with a 3D knuckle and vice versa.
SUBSEA KNUCKLE
| Series | S | M | L |
XL |
|---|---|---|---|---|
| Pedestal diameter | 1300mm | 1800/2200mm | 2600mm | 3200mm |
| Max. outreach | 20m | 25m | 35m | 45m |
| Max. SWL | 25t | 50t | 100t | 150t |
| Max. waterdepth | 3000m | 3000m | 3000m | 3000m |
3D MOTION COMPENSATED KNUCKLE
| Series | S | M | L |
XL |
|---|---|---|---|---|
| SWL 3D knuckle | n/a | 3-5t | 5-10t | 15-20t |
| Harbor load | n/a | 20t | 20t | 30t |

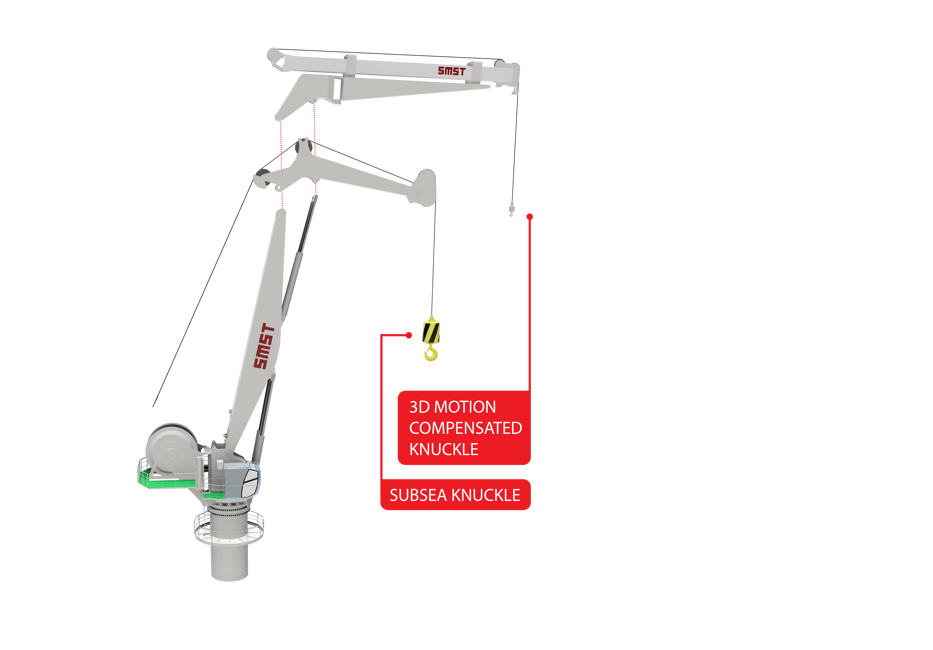

ONE CRANE, TWO KNUCKLES
Multipurpose Offshore Crane
The SMST Offshore Crane is designed to easily exchange knuckles. The 3D motion compensated knuckle compensates the vessel's motions in all directions, whereas the subsea knuckle compensates by Active Heave Compensation (AHC).
The offshore cranes offer maximum operational flexibility by their modular setup.
SMST smartSERIES
The smartSERIES reflects SMST's vision to continuously develop products and technology that guarantee maximum benefits in various fields. Part of the smartSERIES is the smartCRANE philosophy that ensures safe and efficient people and cargo logistics.
